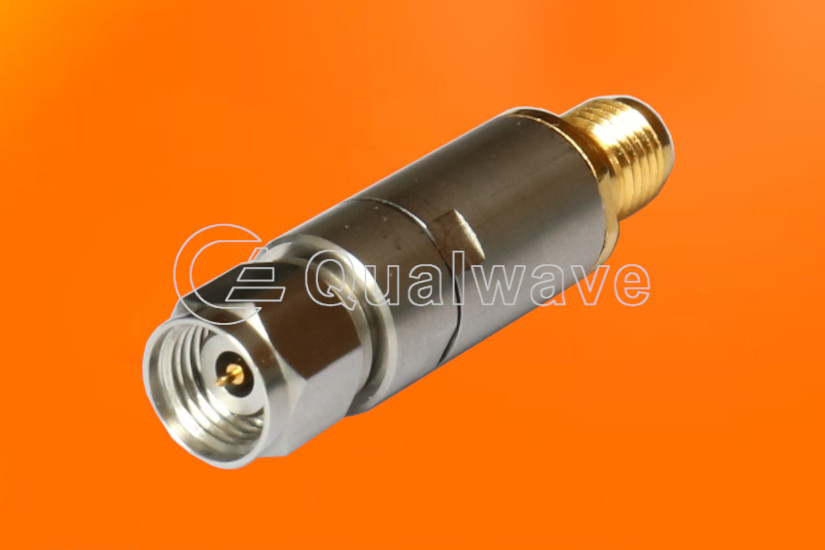

Qualwaves Inc. supplies coaxial and waveguide detectors work from 10MHz to 110GHz. Our detectors are widely used in many applications.
Features:
- Broadband
- High Sensitivity
Applications:
- Telecom
- Instrumentation
- Laboratory Test
- Radar
Standard Coaxial Detectors
| Part Number | Frequency (GHz) | Sensitivity (mV/mW) |
Flatness (dB,max.) |
VSWR (max.) | Polarity | Rise Time (nS) |
Falling Time (nS) |
Input Connector | Output Connector | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|---|---|---|
| QD-10-26500 | 0.01~26.5 | 180 | ±1.5 | 2.2 | Negative/Positive | 20 | 20 | SMA(m), N(m) | SMA(f), N(f), BNC(f) | 1~2 |
| QD-10-40000 | 0.01~40 | 150 | ±3.5 | 2.2 | Negative/Positive | 20 | 20 | 2.92mm(f) | 2.92mm(f) | 1~2 |
High Performance Coaxial Detectors
| Part Number | Frequency (GHz) | Sensitivity (mV/mW) |
Flatness (dB,max.) |
VSWR (max.) | Polarity | Rise Time (nS) |
Falling Time (nS) |
Input Connector | Output Connector | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|---|---|---|
| QDH-10-8000-N-S | 0.01~8 | 400 | ±0.8 | 1.5 | Negative | 10 | 10 | SMA(m) | SMA(f) | 1~2 |
| QDH-10-18000-N-S | 0.01~18 | 400 | ±1 | 2 | Negative | 10 | 10 | SMA(m) | SMA(f) | 1~2 |
| QDH-10-26500-N-3S | 0.01~26.5 | 400 | ±1.5 | 2 | Negative | 10 | 10 | 3.5mm(m) | SMA(f) | 1~2 |
| QDH-10-40000-N-2S | 0.01~40 | 350 | ±1.75 | 2 | Negative | 10 | 10 | 2.4mm(m) | SMA(f) | 1~2 |
Waveguide Detector
| Part Number | Frequency (GHz) | Sensitivity (mV/mW) |
Flatness (dB) |
VSWR (max.) | Polarity | Rise Time (nS) |
Falling Time (nS) |
Input Connector | Output Connector | Lead Time (weeks) |
|---|---|---|---|---|---|---|---|---|---|---|
| QWD-10 | 75~110 | 100 | ±2.2 | - | Negative | 10 | 10 | WR-10(BJ900) | SMA(f) | 1~2 |
| QWD-15 | 50~75 | 200 | ±2 | - | Negative | 10 | 10 | WR-15(BJ620) | SMA(f) | 1~2 |
| QWD-19 | 40~60 | 300 | ±1.8 | - | Negative | 10 | 10 | WR-19(BJ500) | SMA(f) | 1~2 |
| QWD-22 | 33~50 | 300 | ±1.8 | - | Negative | 10 | 10 | WR-22(BJ400) | SMA(f) | 1~2 |
| QWD-28 | 26.5~40 | 300 | ±1.5 | - | Negative | 10 | 10 | WR-28(BJ320) | SMA(f) | 1~2 |
