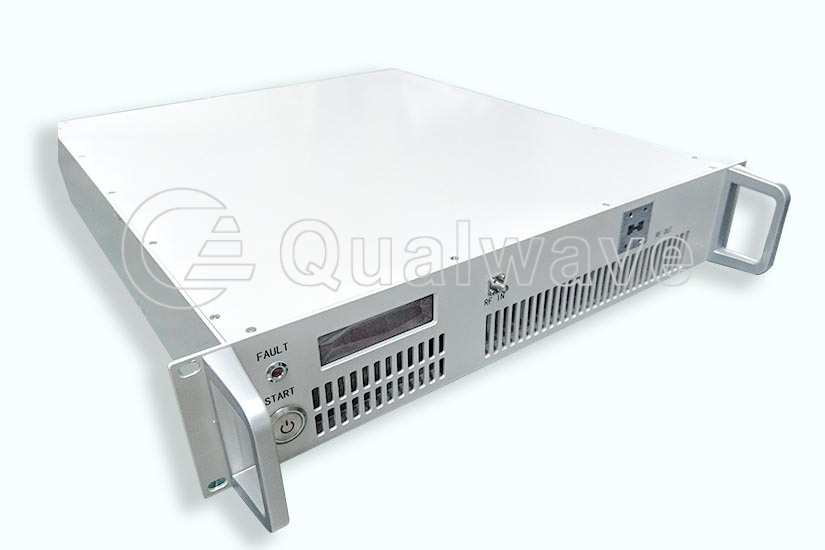

Qualwave supplies Power Amplifier Systems from DC to 110GHz, and the power is up to 200W.
Features:
- Broad Band
- High Power
Applications:
- Wireless
- Transmitter
- Laboratory Test
| Part Number | Frequency (GHz) |
Psat (dBm, Min.) |
P1dB (dBm, Min.) |
Gain (dB, Min.) |
Gain Flatness (±dB, typ.) |
Voltage (VDC) |
VSWR (Max.) |
Lead Time （Weeks) |
|---|---|---|---|---|---|---|---|---|
| QPAS-4K-100-53-53S | 4K~0.1 | 53 | - | 53 | 3±1 | 220 | 2 | 2~8 |
| QPAS-0.01-200-50-50S | 10K~0.2 | 50 | - | 50 | 4±1 | 220 | 1.6 | 2~8 |
| QPAS-4-30-40-40S | 0.004~0.03 | 40 | - | 40 | 2 | 220 | 2 | 2~8 |
| QPAS-20-500-47-50S | 0.02~0.5 | 50 | - | 47 | 3±1 | 220 | 1.5 | 2~8 |
| QPAS-20-1000-49-50S | 0.02~1 | 50 | - | 49 | 4±1 | 220 | 2 | 2~8 |
| QPAS-20-2000-43-44S | 0.02~2 | 44(typ.) | - | 43 | 3±1 | 220 | 2 | 2~8 |
| QPAS-30-1000-42-47S | 0.03~1 | 47 | - | 42 | 3±1 | 220 | 1.5 | 2~8 |
| QPAS-100-6000-37-37S | 0.1~6 | 37 | - | 37 | 5±1(max.) | 220 | 2 | 2~8 |
| QPAS-100-6000-40-40S | 0.1~6 | 40 | - | 40 | 5±1(max.) | 220 | 2 | 2~8 |
| QPAS-108-400-55-54S | 0.108~0.4 | 54 | - | 55 | ±1.5 | 220 | 2 | 2~8 |
| QPAS-200-2000-40-47S | 0.2~2 | 47 | - | 40 | ±2.5 | 220 | 2 | 2~8 |
| QPAS-500-2700-47-50S | 0.5~2.7 | 50 | - | 47 | 4±1 | 220 | 2 | 2~8 |
| QPAS-500-2700-51-50 | 0.5~2.7 | - | 50 | 51 | ±2.5 | 220 | 3 | 2~8 |
| QPAS-500-3000-50-50S | 0.5~3 | 50 | 45 | 50 | ±2.5 | 220 | 2 | 2~8 |
| QPAS-600-6000-43-43S | 0.6~6 | 43 | - | 43 | ±4 | 220 | 2 | 2~8 |
| QPAS-700-2000-40-40S | 0.7~2 | 40 | - | 40 | ±2 | 220 | 2 | 2~8 |
| QPAS-700-2500-55-52S | 0.7~2.5 | 52 | - | 55 | ±2.5 | 220 | 2 | 2~8 |
| QPAS-700-2700-50-50S | 0.7~2.7 | 50 | - | 50 | 3±1 | 220 | 2 | 2~8 |
| QPAS-1000-26500-20-18 | 1~26.5 | - | 18 | 20 | ±2.5 | 220 | 2.6 | 2~8 |
| QPAS-2000-6000-47-47S | 2~6 | 47 | - | 47 | 3±1 | 220 | 2 | 2~8 |
| QPAS-2000-6000-50-49S | 2~6 | 49 | - | 50 | 4±1 | 220 | 2 | 2~8 |
| QPAS-2000-10000-47-47S | 2~10 | 47 | - | 47 | 4 | 220 | 1.5 | 2~8 |
| QPAS-2000-18000-40-38S | 2~18 | 38 | - | 40 | ±2.5 | 220 | 2 | 2~8 |
| QPAS-2000-18000-40-40S | 2~18 | 40 | - | 40 | ±3 | 220 | 2 | 2~8 |
| QPAS-3300-4900-55-55S | 3.3~4.9 | 55 | - | 55 | ±1.5 | 220 | 2 | 2~8 |
| QPAS-5000-6000-50-55S | 5~6 | 55 | - | 50 | ±2.5(max.) | 220 | 2 | 2~8 |
| QPAS-5000-6000-55-63S | 5~6 | 63 | - | 55 | ±1 | 220 | 2 | 2~8 |
| QPAS-5000-7000-30-53S | 5~7 | 53 | - | 30 | - | 220 | 2 | 2~8 |
| QPAS-5000-13000-30-53S | 5~13 | 53 | - | 30 | - | 220 | 1.8 | 2~8 |
| QPAS-6000-18000-45-45S | 6~18 | 45 | - | 45 | ±2.5 | 220 | 2 | 2~8 |
| QPAS-6000-18000-50-50S | 6~18 | 50 | - | 50 | 3 | 220 | 2 | 2~8 |
| QPAS-6000-18000-68-54S | 6~18 | 54 | - | 68 | ±5.3 | 220 | 2 | 2~8 |
| QPAS-8000-12000-40-47S | 8~12 | 47 | - | 40 | ±2 | 220 | 2 | 2~8 |
| QPAS-8000-18000-40-45S | 8~18 | 45(typ.) | - | 40 | ±2 | 220 | 2(typ.) | 2~8 |
| QPAS-8000-18000-40-45S-1 | 8~18 | 45(typ.) | - | 40 | ±2 | 220 | 2(typ.) | 2~8 |
| QPAS-9100-9600-50-53S | 9.1~9.6 | 53 | - | 50 | ±2 | 220 | 2 | 2~8 |
| QPAS-9100-9600-55-56S | 9.1~9.6 | 56 | - | 55 | ±2 | 220 | 2 | 2~8 |
| QPAS-13750-14500-65-53S | 13.75~14.5 | 53 | - | 65 | 2 | 220 | 1.5 | 2~8 |
| QPAS-23000-25000-40-40S | 23~25 | 40 | - | 40 | ±2 | 220 | 1.8 | 2~8 |
| QPAS-23000-25000-40-43S | 23~25 | 43 | - | 40 | ±2 | 220 | 1.8 | 2~8 |
| QPAS-24000-43000-30-30S | 24~43 | 30 | - | 30 | ±3 | 220 | 2 | 2~8 |
| QPAS-39000-48000-35-37S | 39~48 | 37(typ.) | - | 35(typ.) | - | 220 | 2(typ.) | 2~8 |
| QPAS-39000-48000-40-39S | 39~48 | 39(typ.) | - | 40(typ.) | - | 220 | 2(typ.) | 2~8 |
| QPAS-39000-48000-40-42S | 39~48 | 42(typ.) | - | 40(typ.) | +9 | 220 | 2(typ.) | 2~8 |
| QPAS-47000-51000-55-43S | 47~51 | 43 | - | 55 | 4 | 220 | 1.6 | 2~8 |
