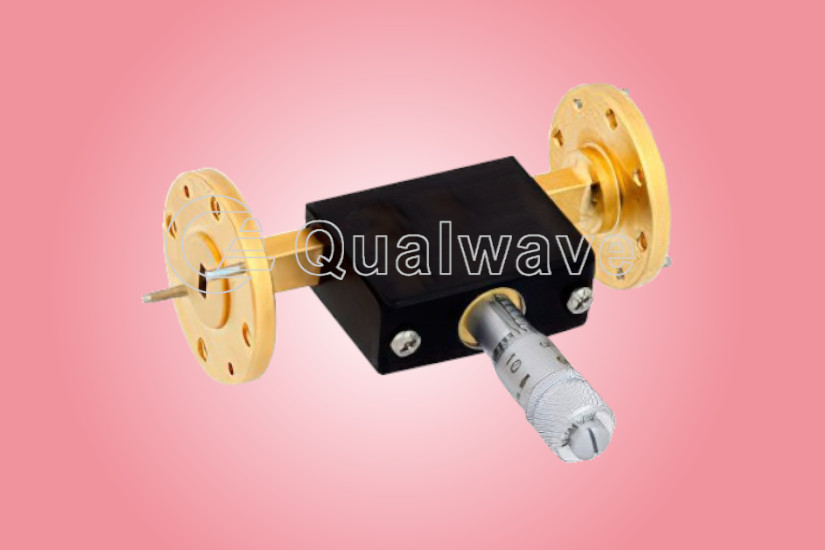

Qualwave supplies low VSWR and high attenuation flatness from 0.96 to 500GHz. The attenuation range is 0~40dB.
Features:
- Low VSWR
Applications:
- Wireless
- Transmitter
- Laboratory Test
- Radar
| Part Number | Frequency (GHz) | Attenuation Range(dB) | VSWR (max.) | Waveguide Size | Flange | Material | Lead Time (Weeks) |
|---|---|---|---|---|---|---|---|
| QWVA-2.2-B-7 | 325~500 | 0~40 | 1.4 | WR-2.2 | UG387/U | Brass | 2~6 |
| QWVA-3.4-B-6 | 220~325 | 0~30 | 1.3 | WR-3.4 | UG385/U | Brass | 2~6 |
| QWVA-3.4-B-7 | 220~325 | 0~40 | 1.4 | WR-3.4 | UG387/U | Brass | 2~6 |
| QWVA-4.3-B-6 | 170~260 | 0~30 | 1.3 | WR-4.3 | UG385/U | Brass | 2~6 |
| QWVA-5.1-B-6 | 140~220 | 0~30 | 1.3 | WR-5.1 | UG385/U | Brass | 2~6 |
| QWVA-5.1-B-7 | 140~220 | 0~40 | 1.4 | WR-5.1 | UG387/U | Brass | 2~6 |
| QWVA-6.5-B-6 | 110~170 | 0~30 | 1.2 | WR-6.5 | UG385/U | Brass | 2~6 |
| QWVA-8-B-6 | 90~140 | 0~30 | 1.2 | WR-8 | UG385/U | Brass | 2~6 |
| QWVA-10-B-12 | 73.8~110 | 0~30 | 1.3 | WR-10 (BJ900) | UG387/UM | Brass | 2~6 |
| QWVA-12-B-7 | 60.5~91.5 | 0~30 | 1.4 | WR-12 (BJ740) | UG387/U | Brass | 2~6 |
| QWVA-15-B-6 | 49.8~75.8 | 0~30 | 1.3 | WR-15 (BJ620) | UG385/U | Brass | 2~6 |
| QWVA-19-B-10 | 39.2~59.6 | 0~30 | 1.25 | WR-19 (BJ500) | UG383/UM | Brass | 2~6 |
| QWVA-22-B-5 | 32.9~50.1 | 0~30 | 1.3 | WR-22 (BJ400) | UG-383/U | Brass | 2~6 |
| QWVA-28-B-1 | 26.5~40.0 | 0~30 | 1.2 | WR-28 (BJ320) | FBP320 | Brass | 2~6 |
| QWVA-34-B-1 | 21.7~33.0 | 0~30 | 1.3 | WR-34 (BJ260) | FBP260 | Brass | 2~6 |
| QWVA-42-B-1 | 17.6~26.7 | 0~30 | 1.3 | WR-42 (BJ220) | FBP220 | Brass | 2~6 |
| QWVA-51-B-1 | 14.5~22.0 | 0~30 | 1.25 | WR-51 (BJ180) | FBP180 | Brass | 2~6 |
| QWVA-62-B-1 | 11.9~18.0 | 0~30 | 1.25 | WR-62 (BJ140) | FBP140 | Brass | 2~6 |
| QWVA-75-B-1 | 9.84~15.0 | 0~30 | 1.25 | WR-75 (BJ120) | FBP120 | Brass | 2~6 |
| QWVA-90-A-2 | 10~11 | 0~30 | 1.5 | WR-90 (BJ100) | FDP100 | Aluminum | 2~6 |
| QWVA-90-B-1 | 9.2~9.8 | 0~30 | 1.35 | WR-90 (BJ100) | FBP100 | Brass | 2~6 |
| QWVA-112-A-2 | 7~8 | 0~30 | 1.5 | WR-112 (BJ84) | FDP84 | Aluminum | 2~6 |
| QWVA-112-B-1 | 6.57~9.99 | 0~30 | 1.25 | WR-112 (BJ84) | FBP84 | Brass | 2~6 |
| QWVA-112-B-2 | 7~10 | 0~30 | 1.2 | WR-112 (BJ84) | FDP84 | Brass | 2~6 |
| QWVA-137-A-2 | 6~7 | 0~30 | 1.6 | WR-137 (BJ70) | FDP70 | Aluminum | 2~6 |
| QWVA-137-B-2 | 5.38~8.17 | 0~30 | 1.25 | WR-137 (BJ70) | FDP70 | Brass | 2~6 |
| QWVA-159-A-2 | 4.64~7.05 | 0~30 | 1.25 | WR-159 (BJ58) | FDP58 | Aluminum | 2~6 |
| QWVA-187-A-2 | 3.94~5.99 | 0~30 | 1.25 | WR-187 (BJ48) | FDP48 | Aluminum | 2~6 |
| QWVA-229-A-2 | 3.22~4.90 | 0~30 | 1.25 | WR-229 (BJ40) | FDP40 | Aluminum | 2~6 |
| QWVA-284-A-2 | 2.60~3.95 | 0~30 | 1.25 | WR-284 (BJ32) | FDP32 | Aluminum | 2~6 |
| QWVA-340-A-2 | 2.17~3.3 | 0~30 | 1.25 | WR-340 (BJ26) | FDP26 | Aluminum | 2~6 |
| QWVA-430-A-2 | 1.72~2.61 | 0~30 | 1.25 | WR-430 (BJ22) | FDP22 | Aluminum | 2~6 |
| QWVA-510-A-2 | 1.45~2.20 | 0~30 | 1.25 | WR-510 (BJ18) | FDP18 | Aluminum | 2~6 |
| QWVA-650-A-2 | 1.13~1.73 | 0~30 | 1.25 | WR-650 (BJ14) | FDP14 | Aluminum | 2~6 |
| QWVA-770-A-2 | 0.96~1.46 | 0~30 | 1.25 | WR-770 (BJ12) | FDP12 | Aluminum | 2~6 |
