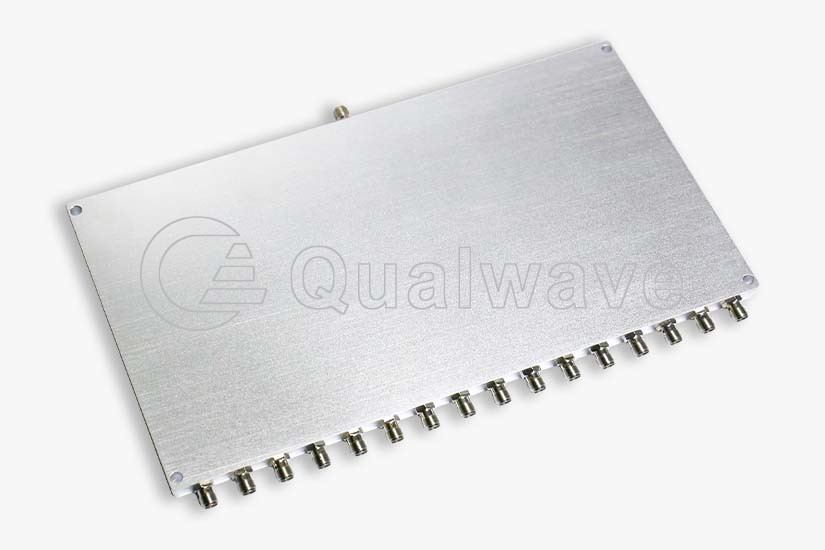

Qualwave supplies 16-way power dividers/combiners at frequencies from DC to 67GHz, and the power is up to 2000W. Our 16-way power dividers/combiners are widely used in many areas.
Features:
- Broadband
- Small Size
- Low Insertion Loss
Applications:
- Amplifiers
- Mixers
- Antennas
- Laboratory Test
| Part Number | Frequency (GHz) |
Power as Divider (W) |
Power as Combiner (W) |
IL (dB,Max.） |
Isolation (dB,Min.) |
Amplitude Balance (dB,Max.) |
Phase Balance (°,Max.) |
VSWR (Max.) |
Connector | Lead Time （Weeks) |
|---|---|---|---|---|---|---|---|---|---|---|
| QPD16-0-3000-2-S | DC~3 | 2 | - | 1 | 24(typ.) | ±1 | ±40 | 1.35 | SMA | 2~3 |
| QPD16-5-300-1-S | 0.005~0.3 | 1 | - | 2.7 | 18 | ±0.9 | ±15 | 1.5 | SMA | 2~3 |
| QPD16-5-1000-2-S | 0.005~1 | 2 | - | 24±2.0 | 24 | ±1.2 | - | 1.3 | SMA | 2~3 |
| QPD16-50-1000-1-S | 0.05~1 | 1 | - | 3.7 | 18 | ±0.9 | ±15 | 1.5 | SMA | 2~3 |
| QPD16-50-5000-2-S | 0.05~5 | 2 | - | 28 | 22 | ±0.8 | ±8 | 1.5 | SMA | 2~3 |
| QPD16-98-102-30-N | 0.098~0.102 | 30 | 2 | 1.2 | 20 | 0.3 | ±3 | 1.2 | N | 2~3 |
| QPD16-200-2000-30-NS | 0.2~2 | 30 | 2 | 3.5 | 20 | ±0.2 | ±2 | 1.5 | SMA, N | 2~3 |
| QPD16-260-460-20-S | 0.26~0.46 | 20 | 2 | 1.5 | 20 | 0.3 | ±4 | 1.25 | SMA | 2~3 |
| QPD16-350-2000-5-NS | 0.35~2 | 5 | 5 | 1.5 | 20 | 0.4 | ±8 | 1.25 | N&SMA | 2~3 |
| QPD16-350-2000-K1-NS | 0.35~2 | 100 | 100 | 1.5 | 20 | 0.4 | ±1 | 1.25 | N&SMA | 2~3 |
| QPD16-350-2000-K8-NS | 0.35~2 | 800 | 800 | 1.5 | 20 | 0.4 | ±1 | 1.25 | N&SMA | 2~3 |
| QPD16-380-6000-30 | 0.38~6 | 30 | 2 | 6.8 | 18 | 0.5 | ±8 | 1.5 | SMA, N | 2~3 |
| QPD16-400-6000-30-S | 0.4~6 | 30 | 2 | 5 | 18 | 0.5 | ±8 | 1.5 | SMA | 2~3 |
| QPD16-500-2000-K16-S | 0.5~2 | 160 | 160 | 2 | 16 | ±1 | ±5 | 1.5 | SMA | 2~3 |
| QPD16-500-3000-50 | 0.5~3 | 50 | 2 | 3 | 18 | ±1 | ±15 | 1.6 | SMA, N | 2~3 |
| QPD16-500-6000-30 | 0.5~6 | 30 | 2 | 4.8 | 18 | 0.5 | ±8 | 1.5 | SMA, N | 2~3 |
| QPD16-500-18000-30-S | 0.5~18 | 30 | 5 | 8.3 | 18 | ±0.6 | ±10 | 1.6 | SMA | 2~3 |
| QPD16-600-2000-30-S | 0.6~2 | 30 | 2 | 1.4 | 20 | ±0.2 | ±2 | 1.3 | SMA | 2~3 |
| QPD16-600-3000-30-S | 0.6~3 | 30 | 2 | 2 | 22 | ±0.1 | ±6 | 1.25 | SMA | 2~3 |
| QPD16-600-6000-30-S | 0.6~6 | 30 | 2 | 4.5 | 18 | 0.4 | ±6 | 1.5 | SMA | 2~3 |
| QPD16-700-3000-30 | 0.7~3 | 30 | 2 | 1.9 | 22 | 0.4 | ±6 | 1.35 | SMA, N | 2~3 |
| QPD16-700-4000-30 | 0.7~4 | 30 | 2 | 2.4 | 18 | ±0.4 | ±8 | 1.4 | SMA, TNC | 2~3 |
| QPD16-700-6000-30 | 0.7~6 | 30 | 2 | 3.8 | 18 | ±0.5 | ±8 | 1.5 | N, TNC | 2~3 |
| QPD16-800-5000-50-N | 0.8~5 | 50 | 5 | 3.5 | 18 | 0.4 | ±6 | 1.4 | N | 2~3 |
| QPD16-950-2150-30-S | 0.95~2.15 | 30 | 2 | 1.2 | 25 | 0.3 | ±4 | 1.3 | SMA | 2~3 |
| QPD16-1000-2000-30-S | 1~2 | 30 | 2 | 1.2 | 25 | 0.3 | ±4 | 1.3 | SMA | 2~3 |
| QPD16-1000-2500-K25-S | 1~2.5 | 250 | 250 | 1.2 | 16 | ±0.3 | ±5 | 1.6 | SMA | 2~3 |
| QPD16-1000-4000-30-SN | 1~4 | 30 | 2 | 1.6 | 20 | 0.4 | ±5 | 1.4 | SMA, N | 2~3 |
| QPD16-1000-6000-30-S | 1~6 | 30 | 2 | 2.5 | 20 | 0.5 | ±6 | 1.45 | SMA | 2~3 |
| QPD16-1000-18000-20-S | 1~18 | 20 | 1 | 6.5 | 15 | ±1.8 | ±12 | 2 | SMA | 2~3 |
| QPD16-1100-1600-N | 1.1~1.6 | - | - | - | 20 | 0.4 | ±6 | 1.8 | N | 2~3 |
| QPD16-1500-5000-30-S | 1.5~5 | 30 | 2 | 2 | 18 | ±0.2 | ±2 | 1.3 | SMA | 2~3 |
| QPD16-2000-4000-30-S | 2~4 | 30 | 2 | 1.2 | 20 | ±0.2 | ±2 | 1.3 | SMA | 2~3 |
| QPD16-2000-4000-50-S | 2~4 | 50 | 3 | 0.8 | 16 | ±0.3 | ±6 | 1.45 | SMA | 2~3 |
| QPD16-2000-4000-K16-S | 2~4 | 160 | 160 | 1.2 | 18 | ±0.3 | ±5 | 1.5 | SMA | 2~3 |
| QPD16-2000-6000-30-S | 2~6 | 30 | 2 | 2 | 18 | ±0.2 | ±2 | 1.3 | SMA | 2~3 |
| QPD16-2000-18000-20-S | 2~18 | 20 | 1 | 3.5 | 17 | ±0.5 | ±8 | 1.7 | SMA | 2~3 |
| QPD16-2490-2690-30-S | 2.49~2.69 | 30 | 2 | 1 | 20 | 0.3 | ±4 | 1.25 | SMA | 2~3 |
| QPD16-2610-3000-30-S | 2.61~3 | 30 | 2 | 1 | 20 | 0.3 | ±4 | 1.3 | SMA | 2~3 |
| QPD16-2700-3500-2K-N | 2.7~3.5 | 2000 | 2000 | 0.35 | - | ±0.3 | ±5 | 1.5 | WR284&N | 2~3 |
| QPD16-3000-8000-30-S | 3~8 | 30 | 2 | 2 | 18 | 0.4 | ±6 | 1.45 | SMA | 2~3 |
| QPD16-5000-12000-20-S | 5~12 | 20 | 1 | 4 | 16 | 0.7 | ±10 | 1.8 | SMA | 2~3 |
| QPD16-5000-18000-20-S | 5~18 | 20 | 1 | 5 | 15 | 0.7 | ±10 | 2 | SMA | 2~3 |
| QPD16-6000-18000-20-S | 6~18 | 20 | 1 | 1.8 | 17 | ±0.8 | ±8 | 1.5 | SMA | 2~3 |
| QPD16-6000-26500-30-S | 6~26.5 | 30 | 2 | 4.4 | 18 | ±0.7 | ±8 | 1.7 | SMA | 2~3 |
| QPD16-6000-40000-20-K | 6~40 | 20 | 2 | 5.5 | 15 | ±0.8 | ±12 | 1.7 | 2.92mm | 2~3 |
| QPD16-8000-12000-20-S | 8~12 | 20 | 1 | 1.8 | 18 | ±0.5 | ±6 | 1.5 | SMA | 2~3 |
| QPD16-18000-26500-30-S | 18~26.5 | 30 | 2 | 3.8 | 16 | ±0.5 | ±6 | 1.6 | SMA | 2~3 |
| QPD16-18000-40000-20-K | 18~40 | 20 | 2 | 4.7 | 18 | ±0.7 | ±12 | 1.8 | 2.92mm | 2~3 |
| QPD16-18000-50000-20-2 | 18~50 | 20 | 1 | 6 | 16 | ±1 | ±14 | 1.8 | 2.4mm | 2~3 |
| QPD16-18000-67000-12-V | 18~67 | 12 | 1 | 8.3 | 16 | ±1.4 | ±16 | 2 | 1.85mm | 2~3 |
| QPD16-24000-44000-20-2 | 24~44 | 20 | 1 | 5.4 | 16 | ±0.8 | ±10 | 1.8 | 2.4mm | 2~3 |
| QPD16-26500-40000-20-K | 26.5~40 | 20 | 2 | 4.7 | 18 | ±0.7 | ±12 | 1.8 | 2.92mm | 2~3 |
| QPD16-26500-50000-20-2 | 26.5~50 | 20 | 1 | 5.9 | 16 | ±1 | ±14 | 1.8 | 2.4mm | 2~3 |
| QPD16-26500-67000-12-V | 26.5~67 | 12 | 1 | 8.3 | 16 | ±1.4 | ±16 | 2 | 1.85mm | 2~3 |
| QPD16-27500-31600-10-K | 27.5~31.6 | 10 | 1 | 2.8 | 16 | ±0.8 | ±8 | 1.6 | 2.92mm | 2~3 |
| QPD16-40000-67000-12-V | 40~67 | 12 | 1 | 8.3 | 15 | ±1.4 | ±16 | 2 | 1.85mm | 2~3 |
