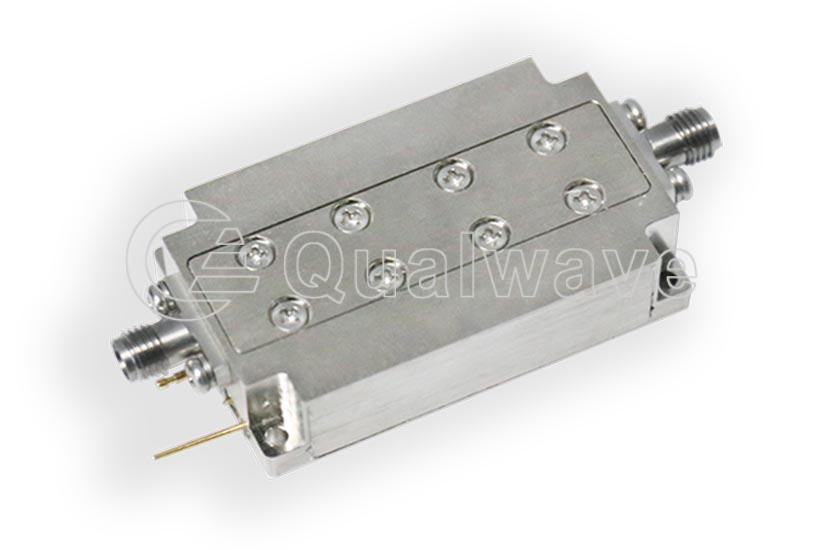

Qualwave supplies Low Noise Amplifiers from DC to 110GHz, and the noise figure can be as low as 0.7 dB.
Features:
- Broad Band
- Low Noise
Applications:
- Wireless
- Receiver
- Laboratory Test
- Radar
Part Number | Frequency (GHz) |
Noise Figure (dB, Max.) |
P1dB (dBm, Min.) |
Gain (dB, Min.) |
Gain Flatness (±dB, typ.) |
Voltage (VDC) |
VSWR (Max.) |
Lead Time (Weeks) |
---|---|---|---|---|---|---|---|---|
QLA-9K-3000-43-30 | 9K~3 | 3 | 16 | 43 | 1.5 | 12 | 1.8 | 2~8 |
QLA-0.01-15000-12-60 | 0.00001~15 | 6(typ.) | 10 | 12 | 2.5 | 12 | 2 | 2~8 |
QLA-0.09-2000-42-30 | 0.00009~2 | 3(typ.) | 15(typ.) | 42(typ.) | - | 12 | 2(typ.) | 2~8 |
QLA-0.1-500-24-30 | 0.0001~0.5 | 3 | 5 | 24 | 0.5 | 15 | 1.5 | 2~8 |
QLA-0.1-500-30-30 | 0.0001~0.5 | 3 | 5 | 30 | 0.5 | 5 | 1.5 | 2~8 |
QLA-0.5-1000-23-12 | 0.0005~1 | 1.2(typ.) | 23(typ.) | 23(typ.) | - | 5 | 1.8(typ.) | 2~8 |
QLA-1-400-50-20 | 0.001~0.4 | 2 | 20 | 50 | 0.5 | 15 | 2 | 2~8 |
QLA-1-12000-30-55 | 0.001~12 | 5.5(typ.) | 15 | 30 | 2.5 | 12 | 2.5 | 2~8 |
QLA-1-26500-17-55 | 0.001~26.5 | 5.5(typ.) | 10 | 17 | 1.0 | 12 | 2.5 | 2~8 |
QLA-1.6-30-13.5-42 | 0.0016~0.03 | 4.2 | 26 | 13.5 | 0.25 | 15 | 1.2 | 2~8 |
QLA-2-1100-22-15 | 0.002~1.1 | 1.5(typ.) | 26(typ.) | 22(typ.) | - | 8 | 1.4(typ.) | 2~8 |
QLA-5-1000-46-15 | 0.005~1 | 1.5(typ.) | 20(typ.) | 46(typ.) | - | 5 | 2(typ.) | 0~4 |
QLA-10-60-15-50 | 0.01~0.06 | 5 | 23 | 15 | 1.0 | 12 | 1.5 | 2~8 |
QLA-10-60-16-50 | 0.01~0.06 | 5 | 23 | 16 | 1.5 | 5 | - | 2~8 |
QLA-10-2500-30-40 | 0.01~2.5 | 4(typ.) | 10 | 30 | 1.0 | 12 | 2 | 2~8 |
QLA-10-18000-25-50 | 0.01~18 | 5 | 10 | 25 | 1.0 | 12 | 2.2 | 2~8 |
QLA-20-3000-30-35 | 0.02~3 | 3.5 | 15 | 30 | 2.5 | 15 | 2 | 2~8 |
QLA-20-6000-32-15 | 0.02~6 | 1.5(typ.) | 12 | 32 | 1.5 | 5 | 2.5 | 2~8 |
QLA-20-8000-20-30 | 0.02~8 | 3(typ.) | 12 | 20 | 2.0 | 12 | 2(typ.) | 2~8 |
QLA-25-1000-50-13 | 0.025~1 | 1.3 | 14 | 50 | - | 5~20 | 2.5 | 2~8 |
QLA-30-1000-15-20 | 0.03~1 | 2 | 18 | 15 | 3 | 5.5 | 2 | 2~8 |
QLA-30-1000-55-13 | 0.03~1 | 1.3 | 25 | 55 | 3 | 5 | 1.8 | 2~8 |
QLA-30-3000-40-30 | 0.03~3 | 3 | 12 | 40 | 2 | 15 | 2 | 2~8 |
QLA-30-6000-25-50 | 0.03~6 | 5 | 10 | 25 | 3 | 15 | 2 | 2~8 |
QLA-30-18000-15-25 | 0.03~18 | 2.5(typ.) | 10 | 15 | 1.0 | 12 | 1.8 | 2~8 |
QLA-50-4000-20-15 | 0.05~4 | 1.5(typ.) | 20(typ.) | 20(typ.) | 1.5 | 5 | 1.5(typ.) | 2~8 |
QLA-50-4000-40-15 | 0.05~4 | 1.5(typ.) | 20(typ.) | 40(typ.) | 3 | 5 | 1.5(typ.) | 2~8 |
QLA-50-6000-25-40 | 0.05~6 | 4 | 22 | 25 | 3 | 12 | 2 | 2~8 |
QLA-100-6000-16-10 | 0.1~6 | 1 | 21 | 16 | 8 | 5 | 2 | 2~8 |
QLA-100-6000-25-25 | 0.1~6 | 2.5 | 15 | 25 | 2 | 12 | 1.5 | 2~8 |
QLA-100-12000-25-25 | 0.1~12 | 2.5 | 15 | 25 | 2 | 12 | 1.5 | 2~8 |
QLA-100-12000-30-40 | 0.1~12 | 4 | 18 | 30 | 2.5(max.) | 12 | 2 | 2~8 |
QLA-100-15000-45-22 | 0.1~15 | 2.2 | 5 | 45 | 2.5 | 12 | 1.5 | 2~8 |
QLA-100-18000-25-40 | 0.1~18 | 4 | 17 | 25 | 2.5(max.) | 12 | 2 | 2~8 |
QLA-100-20000-25-40 | 0.1~20 | 4 | 20 | 25 | 1.5 | 12 | 3 | 2~8 |
QLA-100-20000-30-40 | 0.1~20 | 4 | 17 | 30 | 2.5(max.) | 12 | 2 | 2~8 |
QLA-100-26500-30-30 | 0.1~26.5 | 3 | 20 | 30 | 2.5 | 12 | 2 | 2~8 |
QLA-100-30000-18-55 | 0.1~30 | 5.5 | 15 | 18 | 2.5 | 12 | 2.5 | 2~8 |
QLA-100-40000-27-55 | 0.1~40 | 5.5(typ.) | 15 | 27 | 3.5(max.) | 12 | 2.5 | 2~8 |
QLA-100-50000-28-50 | 0.1~50 | 5(typ.) | 10 | 28(typ.) | 3.0(max.) | 12 | 3 | 2~8 |
QLA-200-6000-42-13 | 0.2~6 | 1.3 | 15 | 42 | 2 | 12 | 2 | 2~8 |
QLA-200-10000-45-50 | 0.2~10 | 5 | 23 | 45 | 2.0(max.) | 12 | 2.2 | 2~8 |
QLA-300-40000-40-55 | 0.3~40 | 5.5(typ.) | 14 | 40 | 2.5 | 12 | 2.5 | 2~8 |
QLA-400-8000-40-25 | 0.4~8 | 2.5 | 14 | 40 | 1.5 | 12 | 2 | 2~8 |
QLA-500-8000-20-16 | 0.5~8 | 1.6(typ.) | 18(typ.) | 20(typ.) | 1.0 | 6 | 3.5 | 2~8 |
QLA-500-8000-30-22 | 0.5~8 | 2.2(typ.) | 17(typ.) | 30(typ.) | - | +5 | 2.5(typ.) | 2~8 |
QLA-500-18000-10-30 | 0.5~18 | 3(typ.) | 12 | 10 | 1.5 | 15 | 2 | 2~8 |
QLA-500-18000-14-30 | 0.5~18 | 3(typ.) | 17 | 14 | 0.75 | 15 | 2 | 2~8 |
QLA-500-18000-16-50 | 0.5~18 | 5 | 18 | 16 | 1.5(max.) | 12 | 2.2 | 2~8 |
QLA-500-18000-40-30 | 0.5~18 | 3 | 10 | 40 | 1.5 | 12 | 2.5 | 2~8 |
QLA-500-18000-40-35 | 0.5~18 | 3.5 | 12 | 40 | 2 | 5 | 2 | 2~8 |
QLA-500-40000-43-50 | 0.5~40 | 5 | 14 | 43 | 2.5 | 12 | 2 | 2~8 |
QLA-600-4200-20-10 | 0.6~4.2 | 1(typ.) | 21(typ.) | 20(typ.) | 2 | 5 | 2(typ.) | 0~4 |
QLA-600-4200-30-08 | 0.6~4.2 | 0.8 | 21 | 30 | 2.5 | 5 | 2 | 0~4 |
QLA-600-4200-35-10 | 0.6~4.2 | 1.0 | 21 | 35 | 2 | 5 | 2 | 0~4 |
QLA-600-4200-55-11 | 0.6~4.2 | 1.1(typ.) | 21(typ.) | 55(typ.) | 7.5(typ.) | 5 | 2(typ.) | 0~4 |
QLA-1000-6000-30-20 | 1~6 | 2(typ.) | 18(typ.) | 30 | 1 | 5~15 | 1.5(typ.) | 2~8 |
QLA-1000-6000-45-20 | 1~6 | 2(typ.) | 19(typ.) | 45(typ.) | 2 | 5~15 | 2(typ.) | 2~8 |
QLA-1000-12000-30-20 | 1~12 | 2(typ.) | 18(typ.) | 30 | 1 | 5~15 | 1.6(typ.) | 2~8 |
QLA-1000-12000-45-20 | 1~12 | 2(typ.) | 19(typ.) | 45(typ.) | 2 | 5~15 | 2(typ.) | 2~8 |
QLA-1000-18000-30-20 | 1~18 | 2(typ.) | 18(typ.) | 27, 30(typ.) | 1 | 5~15 | 2(typ.) | 2~8 |
QLA-1000-18000-30-25-L | 1~18 | 2.5(typ.) | 19(typ.) | 30(typ.) | 1.5 | 5 | 2(typ.) | 2~8 |
QLA-1000-18000-45-20 | 1~18 | 2(typ.) | 19(typ.) | 45(typ.) | 2 | 5~15 | 2(typ.) | 2~8 |
QLA-1000-18000-55-22 | 1~18 | 2.2 | 10 | 55 | 1.5 | 12 | 2.5 | 2~8 |
QLA-1000-20000-25-35 | 1~20 | 3.5 | 21 | 25 | 2.5 | 12 | 2 | 2~8 |
QLA-1000-20000-40-40 | 1~20 | 4 | 16 | 40 | 2 | 12 | 1.5 | 2~8 |
QLA-1000-40000-30-80 | 1~40 | 8 | 10 | 30 | 3.0 | 12 | 2.5 | 2~8 |
QLA-2000-6000-38-10 | 2~6 | 1(typ.) | 18 | 38(typ.) | 1(typ.) | 5~15 | 1.4(typ.) | 2~8 |
QLA-2000-8000-38-11 | 2~8 | 1.1(typ.) | 18 | 38(typ.) | 1(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-2000-12000-38-12 | 2~12 | 1.2(typ.) | 18 | 38(typ.) | 1(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-2000-18000-38-15 | 2~18 | 1.5(typ.) | 18 | 38(typ.) | 1.5(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-2000-26500-25-40 | 2~26.5 | 4 | 8 | 25 | 2 | 12 | 1.8 | 2~8 |
QLA-2000-26500-48-50 | 2~26.5 | 5 | 10 | 48 | 4.5 | 9 | 2.5 | 2~8 |
QLA-4000-8000-38-11 | 4~8 | 1.1(typ.) | 18 | 38(typ.) | 1(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-4000-12000-38-12 | 4~12 | 1.2(typ.) | 18 | 38(typ.) | 1(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-4000-18000-38-15 | 4~18 | 1.5(typ.) | 18 | 38(typ.) | 1.5(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-5900-7250-30-15 | 5.9~7.25 | 1.5 | 18(typ.) | 30(typ.) | - | 5 | 3(typ.) | 2~8 |
QLA-6000-12000-38-12 | 6~12 | 1.2(typ.) | 18 | 38(typ.) | 1(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-6000-18000-38-15 | 6~18 | 1.5(typ.) | 18 | 38(typ.) | 1.5(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-8000-12000-38-12 | 8~12 | 1.2(typ.) | 18 | 38(typ.) | 1(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-8000-18000-38-15 | 8~18 | 1.5(typ.) | 18 | 38(typ.) | 1.5(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-8000-26500-15-35 | 8~26.5 | 3.5 | 8 | 15 | 1.5 | 5 | 1.5 | 2~8 |
QLA-8000-26500-40-65 | 8~26.5 | 6.5 | 18 | 40 | 2 | 12 | 2 | 2~8 |
QLA-12000-18000-38-15 | 12~18 | 1.5(typ.) | 18 | 38(typ.) | 1.5(typ.) | 5~15 | 1.6(typ.) | 2~8 |
QLA-12000-40000-30-40 | 12~40 | 4 | 5 | 30 | 2.5 | 12 | 2.5 | 2~8 |
QLA-16000-22000-35-25 | 16~22 | 2.5 | 19 | 35 | 1.5 | 12 | 2 | 2~8 |
QLA-16000-40000-20-35 | 16~40 | 3.5 | 16 | 18 | 3.5 | 5 | 2 | 2~8 |
QLA-17500-20200-20-20 | 17.5~20.2 | 2 | 2 | 20 | 0.5 | 5 | 1.5 | 2~8 |
QLA-17700-21200-30-80 | 17.7~21.2 | 8 | 10 | 30 | 2 | 15~24 | 2 | 2~8 |
QLA-18000-26500-30-40 | 18~26.5 | 4 | 5 | 30 | 1 | 12 | 1.8 | 2~8 |
QLA-18000-26500-48-25 | 18~26.5 | 2.5 | 10 | 48 | 2.5 | 12 | 2.3 | 2~8 |
QLA-18000-26500-45-32 | 18~26.5 | 3.2 | 10 | 45 | 2 | 5 | 1.8 | 2~8 |
QLA-18000-28000-20-40 | 18~28 | 4 | 8 | 20 | 1.5 | 5 | 1.6 | 2~8 |
QLA-18000-40000-25-50 | 18~40 | 5 | 12 | 25 | 1.5(max.) | 5 | 2.5 | 2~8 |
QLA-18000-40000-25-50(P10) | 18~40 | 5 | 10 | 25 | 3 | 5 | 2 | 2~8 |
QLA-18000-40000-25-50(P15) | 18~40 | 5 | 15 | 25 | 2.5 | 12 | 2 | 2~8 |
QLA-18000-40000-30-50(P20) | 18~40 | 5 | 20 | 30 | 2.5 | 12 | 2.5 | 2~8 |
QLA-18000-40000-30-35 | 18~40 | 3.5 | 8 | 30 | 2.5 | 12 | 2.2 | 2~8 |
QLA-18000-40000-40-45 | 18~40 | 4.5 | 6 | 40 | 2.5 | 15 | 2 | 2~8 |
QLA-18000-40000-50-45 | 18~40 | 4.5 | 5 | 50 | 3 | 15 | 2 | 2~8 |
QLA-20000-32000-40-25 | 20~32 | 2.5 | 10 | 40 | 2.5 | 5 | 2 | 2~8 |
QLA-23000-25000-35-20 | 23~25 | 2 | -3 | 35 | 1.5 | 5 | 1.8 | 2~8 |
QLA-23000-40000-34-35 | 23~40 | 3.5 | 10 | 34 | 2.5 | 12 | 2 | 2~8 |
QLA-24000-28000-30-40 | 24~28 | 4 | 10 | 30 | 1 | 5 | 2 | 2~8 |
QLA-24000-30000-30-20 | 24~30 | 2 | 10 | 30 | 1 | 5 | 1.5 | 2~8 |
QLA-25300-27200-50-18 | 25.3~27.2 | 1.8 | 5 | 50 | 1 | 12 | 1.5 | 2~8 |
QLA-26000-40000-30-28 | 26~40 | 2.8 | 10 | 30 | 2.5 | 12 | 2.3 | 2~8 |
QLA-26000-40000-30-30 | 26~40 | 3 | - | 30 | - | 7 | 2.2 | 2~8 |
QLA-26500-40000-20-30 | 26.5~40 | 3 | 5 | 20 | 1.5 | 5 | 1.5 | 2~8 |
QLA-26500-40000-25-40 | 26.5~40 | 4 | - | 25 | 2 | 5 | 1.8 | 2~8 |
QLA-39000-41000-30-32 | 39~41 | 3.2 | 10 | 30 | 0.5 | 5 | 2 | 2~8 |
QLA-40000-53000-40-50 | 40~53 | 5 | 10 | 40 | 2 | 5 | 2 | 2~8 |
QLA-50000-59000-40-55 | 50~59 | 5.5 | 10 | 40 | 1 | 8 | 2 | 2~8 |
QLA-50000-75000-25-30 | 50~75 | 3 | - | 25 | - | 7 | 2 | 2~8 |
QLA-57000-67000-30-50 | 57~67 | 5 | 10 | 30 | - | 12 | 2 | 2~8 |
QLA-60000-90000-35-40 | 60~90 | 4 | 9 | 35 | - | 5 | 3 | 2~8 |
QLA-60000-90000-26-43 | 60~90 | 4.3 | - | 26 | - | 7 | 2 | 2~8 |
QLA-75000-110000-20.5-32 | 75~110 | 3.2 | - | 20.5 | 2.5 | 7 | 2 | 2~8 |
QLA-75000-110000-38-36 | 75~110 | 3.6 | - | 38 | - | 7 | 2 | 2~8 |
QLA-110000-170000-16-40 | 110~170 | 4(typ.) | - | 16 | 3 | 7 | 2.2 | 2~8 |
QLA-140000-200000-15-45 | 140~200 | 4.5 | - | 15 | 3 | 7 | 2.5 | 2~8 |
QLA-200000-230000-22-72 | 200~230 | 7.2 | - | 22 | 3 | 5 | 2.5 | 2~8 |
QLA-230000-260000-19-85 | 230~260 | 8.5 | - | 19 | - | 5 | 3.5 | 2~8 |
